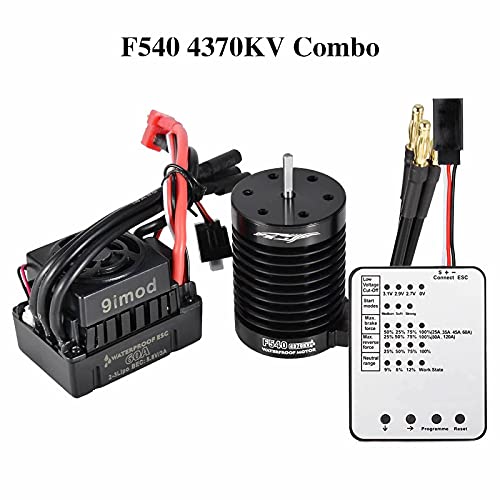

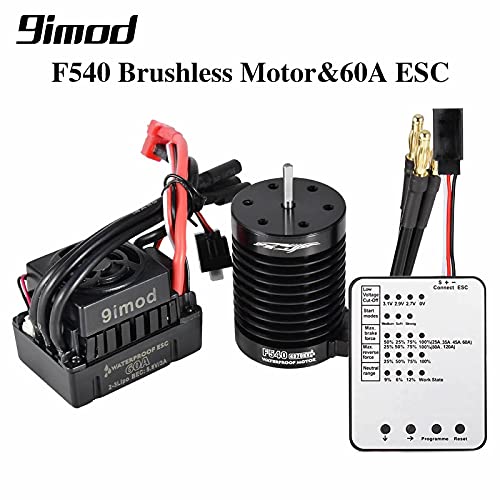

9imod F540-V2 4370KV Brushless Sensorless Waterproof Motor 3.175mm+60A ESC For 1/10 RC Drift Racing Off-road Car Truck

Add your review

Amazon.nl Price: 43.35 (as of 21/07/2022 23:11 PST- Details) & FREE Shipping.

Motor Features:1.4 Pole 12 Slot Hi-torque Motor Design.2.High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings.
Motor Features:3.Universal fit its all 1/10 brushless cars-multi-mounting system for M3 screws.4.Precision balanced rotor,smoothness for best reliability and maximum RPM.5.Stator – Super Thin (0.2mm) Laminations.

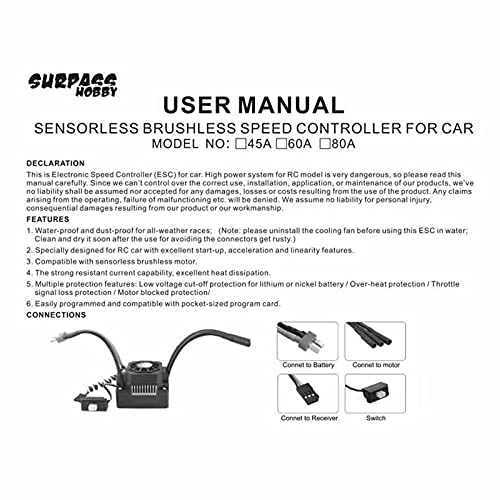

ESC Features:1.Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water,Clean and dry it soon after the use for avoiding the connectors get rusty).2.Specially designed for RC car with excellent start-up, acceleration and linearity features.3.Compatible with sensorless brushless motor.

Amazon.nl Price: 43.35 (as of 21/07/2022 23:11 PST- Details) & FREE Shipping.

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

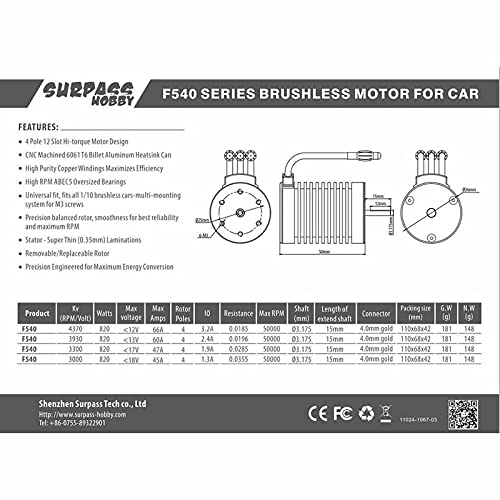

Motor Specifications:
Brand:9imod
Item Number:F540-V2
Color: black
Material: aluminum alloy
KV : 4370KV
Watts: 800W
Max voltage: less than 12V
Max Amps: 66A
Rotor poles: 4
IO: 3.2A
Resistance: 0.0185
Max RPM: 50000
Length:50mm
Diameters:36mm
Shaft: 3.175mm
Length of extending shaft: 15mm
Connector: 4.0mm gold
Applicable models: 1:10brushless cars
Product Size:50*36mm
ESC Specifications:
Name: 60A ESC
Cont.Current:60A
Burst Current:360A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<4300KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <3300KV
For 3S Lipo or 9 cells NiMH :
1. on-road: 3660-Size or smaller motor with the KV<3300KV
2. off-road/Buggy/Monster: 3660-size or smaller motor with the KV <2600KV
Suitable Car: 1/10 RC Car
Resistance: 0.0007ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.8V/3A (Switch mode)
Dimensions:51.5×38.5×38.5mm
Weight:76g

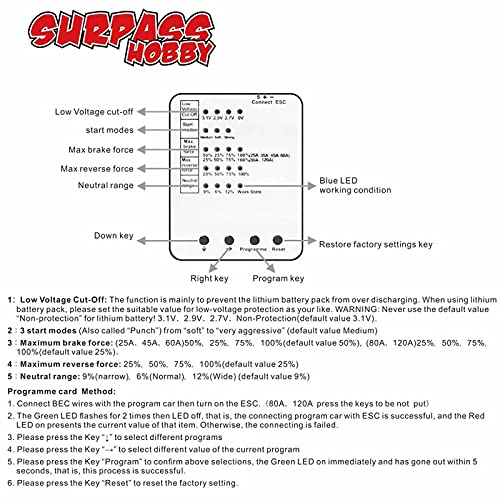

LED Program Card Specifications:
Use: Vehicles & Remote Control Toys
For Vehicle Type: Cars
Remote Control Peripherals/Devices: LED Program Card
Only Apply to: Racerstar
Material: plastic
Low voltadge cut off voltadge: 3.1V/Cell 2.9V/Cell 2.7V/Cell No cut-off
Start mode:Medium soft strong
Max brake force: 25%,50%,75%,100%,
Max reverse force: 25%,50%,75%,100%,
Neutral range: 6%,9%,12%,work state
Size:60*48*6mm
Weight:20g
Package Included:
1 x F540-V2 4300KV Brushless Motor
1 x 60A ESC
1 x LED Program Card
1 x English Manual

Motor Features:1.4 Pole 12 Slot Hi-torque Motor Design.2.High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings.
Motor Features:3.Universal fit its all 1/10 brushless cars-multi-mounting system for M3 screws.4.Precision balanced rotor,smoothness for best reliability and maximum RPM.5.Stator – Super Thin (0.2mm) Laminations.
ESC Features:1.Water-proof and dust-proof for all-weather races. (Note: please uninstall the cooling fan before using this ESC in water,Clean and dry it soon after the use for avoiding the connectors get rusty).2.Specially designed for RC car with excellent start-up, acceleration and linearity features.3.Compatible with sensorless brushless motor.
ESC Features:4.The strong resistant current capability, excellent heat dissipation.5.Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/over-heat protection/ Throttle signal loss protection/ Motor blocked protection.6.Easily programmed and compatible with pocket-sized program card.
Program Card Features:1.Suit for 25/35/45/60/80/120A ESC.2.This Programing Card is easy to use.3.It can program brake force, reverse force, low voltage protection, start mode and neutral range.

Specification: 9imod F540-V2 4370KV Brushless Sensorless Waterproof Motor 3.175mm+60A ESC For 1/10 RC Drift Racing Off-road Car Truck
